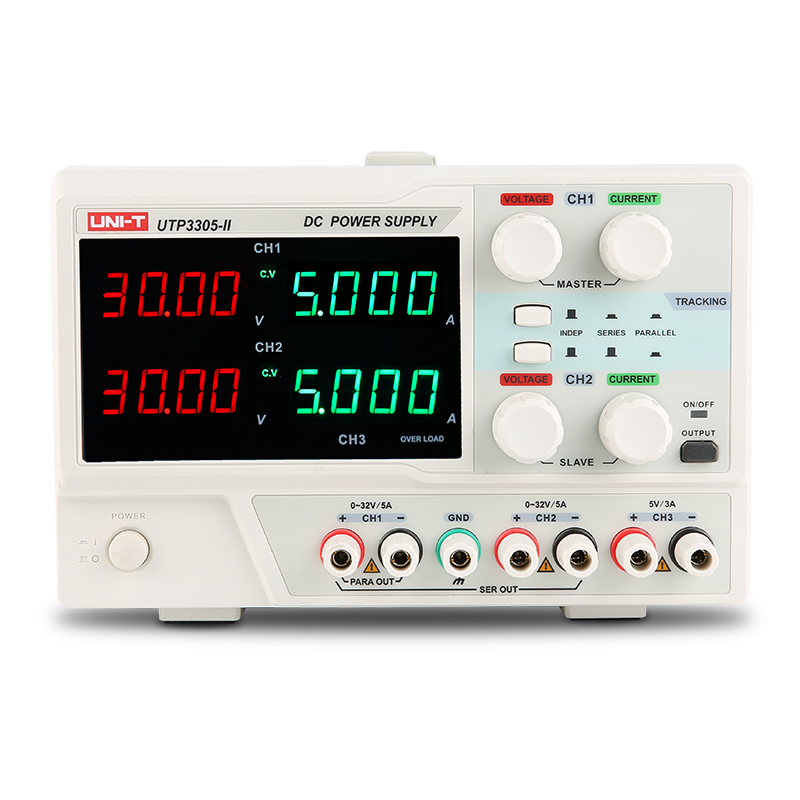

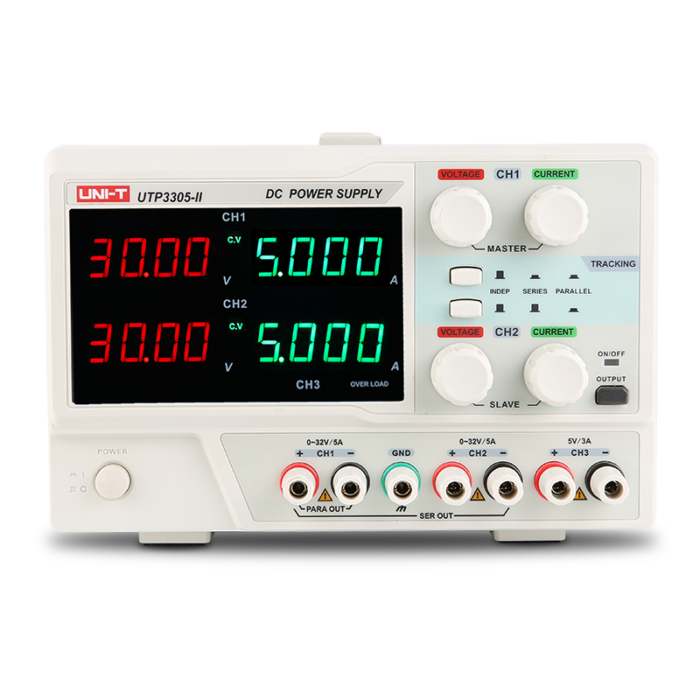

- UTP3305-II Linear Power Supply – Precision and Reliability
The UTP3305-II linear power supply is designed for applications requiring precise and stable voltage and current output. This high-performance power supply features three output channels with a combined output power of 335W, making it suitable for a variety of laboratory and industrial settings.
Key Features:
- Output Voltage:
- CH1, CH2: 0~32V
- CH3: 5V
- Output Current:
- CH1, CH2: 0~5A
- CH3: 0~3A
- Output Power: 335W total, ensuring ample power for various applications.
- Load Regulation:
- CV (Constant Voltage): <0.01% + 3mV
- CC (Constant Current): ≤0.2% + 3mA
- Ripple and Noise:
- CV: ≤1mVrms
- CC: ≤3mArms
- Output Regulation Resolution:
- CV: 10mV (typical)
- CC: 1mA (typical)
- Tracking Bias: ±(0.1% of reading + 30mV)
- CC Tracking Accuracy: ±(0.3% of reading + 10mA)
- Reliability: MTBF (e): ≥2000 hours, ensuring long-term dependable performance.
- Display:
- 4-bit voltage and current dual display for precise monitoring.
- 4 windows LED display mode for clear visibility of all output channels.
- Master-Slave Tracking: CH1 and CH2 can be configured for master-slave tracking in series, allowing synchronized output adjustments.

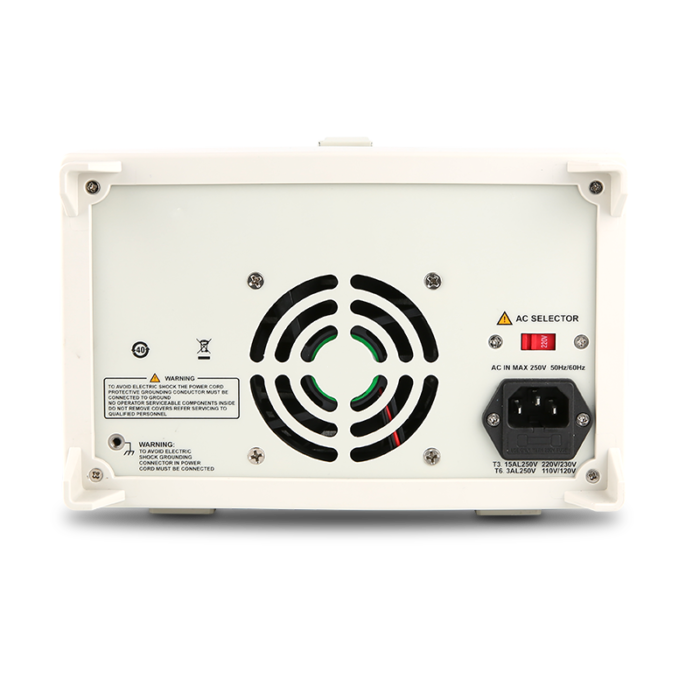

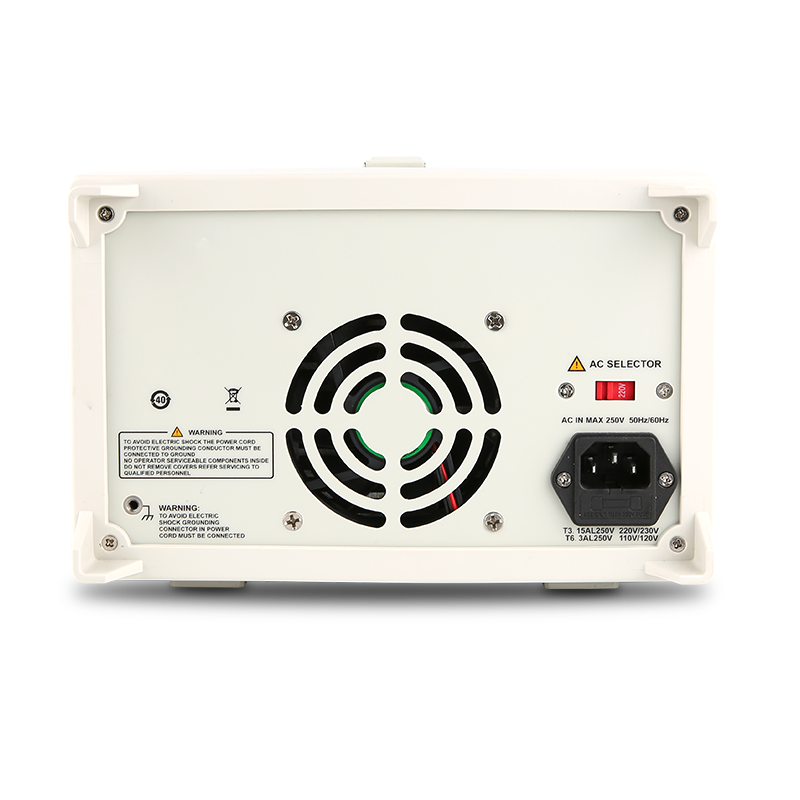

- Power Input:
- Voltage: 115V AC / 230V AC
- Frequency: 47Hz~63Hz
Product Details:
- Color: White and grey
- Dimensions (W×H×D): 319mm × 146mm × 226mm
- Net Weight: 10.5kg
Why You Should Buy: The UTP3305-II linear power supply is ideal for professionals who require high precision and reliability in power output. Its advanced load regulation, low ripple and noise, and master-slave tracking capabilities make it suitable for detailed and sensitive electronic testing and development. The robust design and reliable performance ensure that it can handle demanding environments with ease.
Applications
- Laboratory Testing: Provides stable and precise power for various experimental setups in educational or research based applications.
- Industrial Applications: Suitable for powering and testing industrial electronic components and systems.
- Educational Use: Ideal for teaching electronic principles and conducting practical experiments in educational institutions.
For more detailed information, please visit the UNI-T website.
