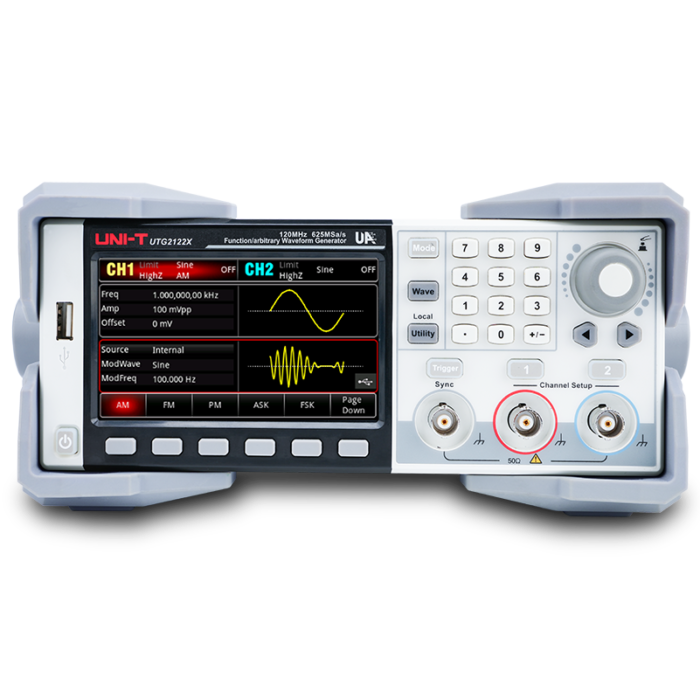

UNI-T UTG2062X Function/Arbitrary Waveform Generator- 60 MHz

Key Features:

• Max Frequency: 80 MHz
• Sampling Rate: 625 MSa/s
• Modulation Types: Supports AM, PM, FM, DSB-AM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, QAM, OSK, PWM, SUM.
• Vertical Resolution: 16 bits for high-precision signal generation
• Waveforms: Generates sine, square, pulse, ramp, noise, DC, arbitrary, harmonic, PRBS, expression waveforms
• Sweep Modes: Logarithmic, linear, and step sweep modes for detailed signal analysis
• Frequency Characteristics:
  • Sine: 1 μHz ~ 80 MHz
  • Square: 1 μHz ~ 40 MHz
  • Ramp: 1 μHz ~ 4 MHz
  • Pulse: 1 μHz ~ 40 MHz
  • Arbitrary: 1 μHz ~ 40 MHz
  • Harmonic: 1 μHz ~ 40 MHz
  • PRBS: 1 μbps ~ 40 Mbps
  • Expression: 1 μHz ~ 20 MHz
• Resolution: 1 μHz for precise frequency setting

Output Characteristics:

• Impedance: 50 Ω typical value
• DC Offset Range (AC+DC): ±5 V (50 Ω); ±10 V (High Z)
• Amplitude Resolution: 1 mV

General Characteristics:

• Power Supply: 100~240 VAC, 50Hz/60Hz
• Display: 4.3-inch TFT LCD capacitive touch screen for easy operation and clear visibility

Why You Should Buy: This waveform generator is ideal for professionals requiring precise and versatile signal generation. Its extensive range of modulation types and high vertical resolution make it suitable for detailed signal analysis and testing in various applications, from telecommunications to electronics development. The high frequency range, combined with the variety of waveform types, ensures that this generator can meet the demands of complex testing environments. The inclusion of sweep modes allows for thorough signal analysis, making it an invaluable tool for engineers and researchers.

Applications

• Telecommunications: Precise signal generation for testing and troubleshooting. The ability to generate complex modulated signals such as PSK and QAM makes it particularly useful in communication system development and testing.
• Electronics Development: Versatile waveform generation for design and testing. Its wide range of waveforms and modulation types supports comprehensive testing and debugging of electronic circuits.
• Education: Comprehensive tool for teaching signal generation and analysis. The user-friendly interface and wide functionality make it an excellent educational tool for demonstrating various signal processing concepts.

Additional Features:

• Harmonic Generation: Allows for the creation of harmonics, which is essential for testing filters and harmonic distortion in circuits.
• PRBS and Expression Waveforms: Useful for creating pseudo-random bit sequences and mathematical expressions, enhancing its utility in digital signal processing.
• High Precision with 16-bit Resolution: Ensures that even small signal variations are accurately represented, which is crucial for detailed analysis.

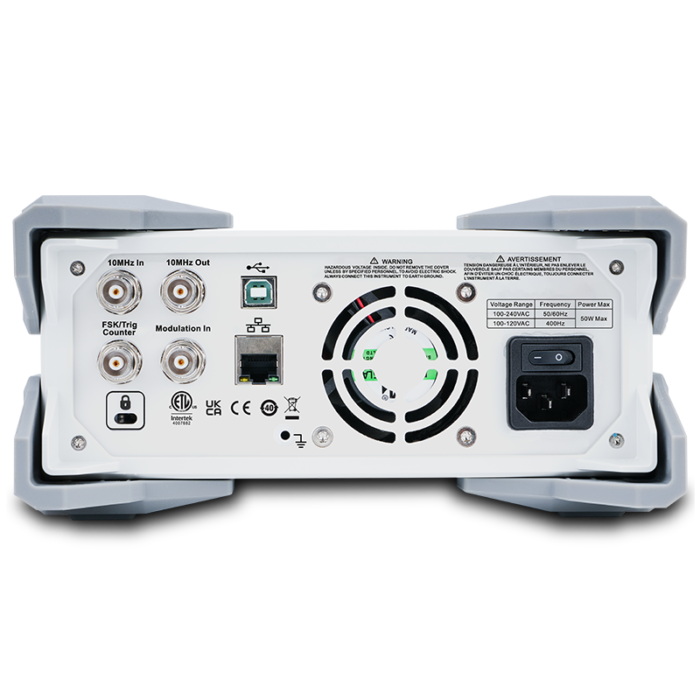

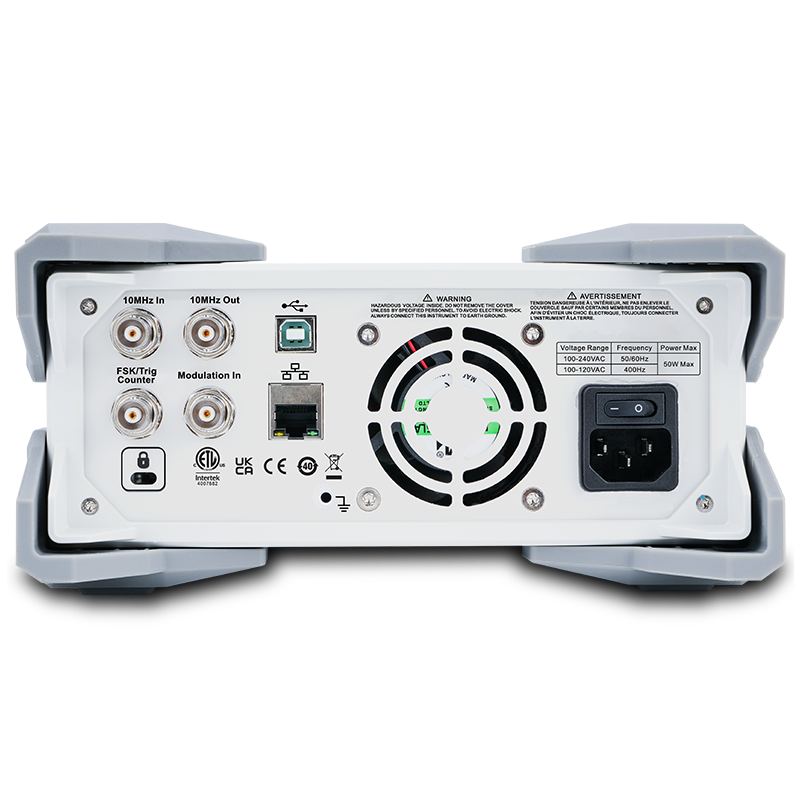

• Multiple Connectivity Options: The device supports various connectivity options, including USB, which allows for easy integration with other test equipment and computers.

This Function/Arbitrary Waveform Generator combines high performance, versatility, and ease of use, making it a critical instrument for any advanced laboratory or development environment. For more detailed information, please visit the UNI-T website or read our blog !.
