UNI-T UT8805E Benchtop Multimeter with LCRQ- True Rms

The UT8805E is an auto-ranging, true RMS desktop digital multimeter that offers high precision and a wide range of functionalities, making it an ideal tool for professionals in various fields such as embedded system design, manufacturing, electric power, and education. With its advanced features and robust design, the UT8805E stands out as a superior electrical measuring instrument.

Key Features:

• Display: 4.3-inch TFT-LCD with 480*272 resolution, providing clear and detailed readings.
• Resolution: 200,000 count resolution ensures high precision in measurements.
• Reading Speed: Capable of up to 5,000 readings per second, facilitating rapid data acquisition.
• True RMS Measurement: Accurate measurement of AC voltage and current, essential for capturing real-world signals.
• Storage: Equipped with 1GB NAND Flash, offering extensive data storage capabilities for test results.
• Data Recording: Supports 10,000 reading history data record, allowing for comprehensive analysis and review.
• Thermocouple Compensation: Built-in cold junction compensation enhances temperature measurement accuracy.
• SCPI Remote Control: Compatible with standard SCPI commands, enabling remote control and integration with automated test systems.
• Dual Display: Features both Chinese and English menus and a built-in help system, catering to a wide range of users.

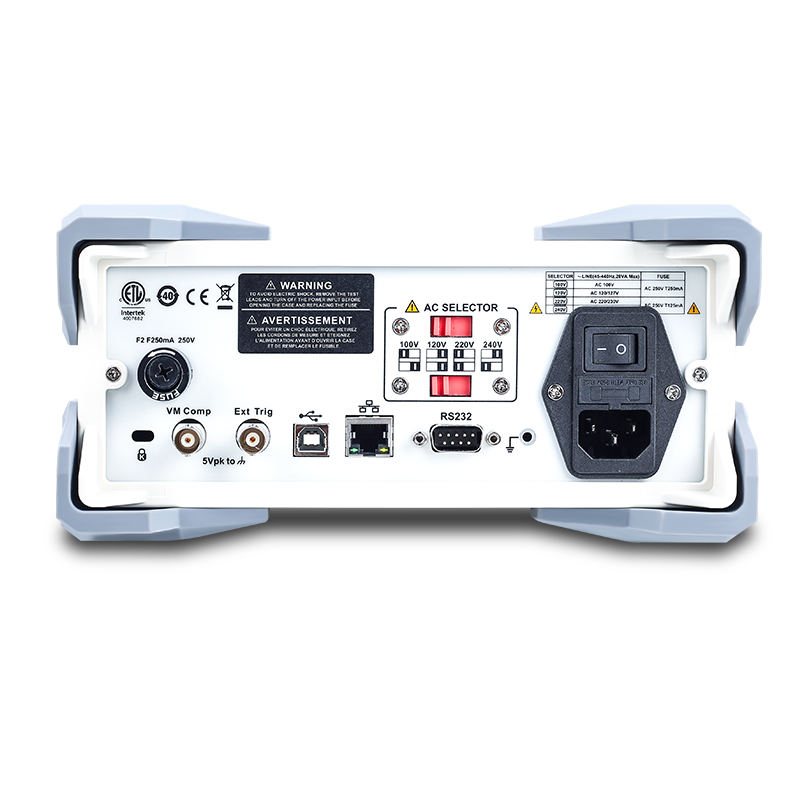

• Interfaces: Includes USB Device, USB Host, LAN, and RS-232C interfaces, ensuring versatile connectivity options.
• Data Management: Measured data and settings can be recorded and conveniently accessed via VXI11, USBTMC, and U-disk, simplifying data management and transfer.
• Voltage Ranges:
  • DC Voltage: 200 mV, 2 V, 20 V, 200 V, 1000 V
  • AC Voltage: 200 mV, 2 V, 20 V, 200 V, 750 V
• Current Ranges:
  • DC Current: 200 μA, 2 mA, 20 mA, 200 mA, 2 A, 10 A
  • AC Current: 2 mA, 20 mA, 200 mA, 2 A, 10 A
• Resistance: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 10 MΩ, 100 MΩ
• Capacitance: 2 nF, 20 nF, 200 nF, 2 μF, 20 μF, 200 μF, 2 mF
• Frequency Measurement: 20 Hz – 1 MHz
• Temperature Measurement: Supports thermocouple and thermal resistance sensor measurements
• Display Count: 199,999
• Auto Range: Yes
• True RMS: Yes
• Sampling Speed: 5k readings/second
• Frequency Response: 100 kHz
• Diode/Triode Testing: Yes
• Continuity Buzzer: Yes
• Data Hold: Yes
• Mathematical Operations: Pass/Fail, relative value, minimum/maximum/average, standard deviation, dBm, dB, Hold, histogram, trend chart, and bar chart
• Input Resistance: ≥10 GΩ or 10 MΩ
• Power Supply: Standard power cord, 100-240V 50Hz
• Weight: Approximately 3.1 kg
• Dimensions: 320 x 265 x 110 mm

Why You Should Buy: The UT8805E digital multimeter is designed to provide precise and reliable measurements with a host of advanced features. Its true RMS measurement capability ensures accurate readings of AC signals, while the high resolution and rapid reading speed support detailed and fast data collection. The extensive data storage and robust connectivity options make it suitable for both standalone use and integration into larger automated test systems. Whether you are involved in design, manufacturing, or education, the UT8805E offers the performance and flexibility needed for a wide range of applications.

Applications

• Embedded System Design: Facilitates precise measurement and analysis during the development of embedded systems.
• Manufacturing: Supports quality control and testing processes in industrial environments.
• Electric Power: Ideal for monitoring and troubleshooting electrical systems and components.
• Education: Provides a comprehensive tool for teaching and research in academic settings.

For more detailed information and to explore the full range of features, please visit the UNI-T website.
