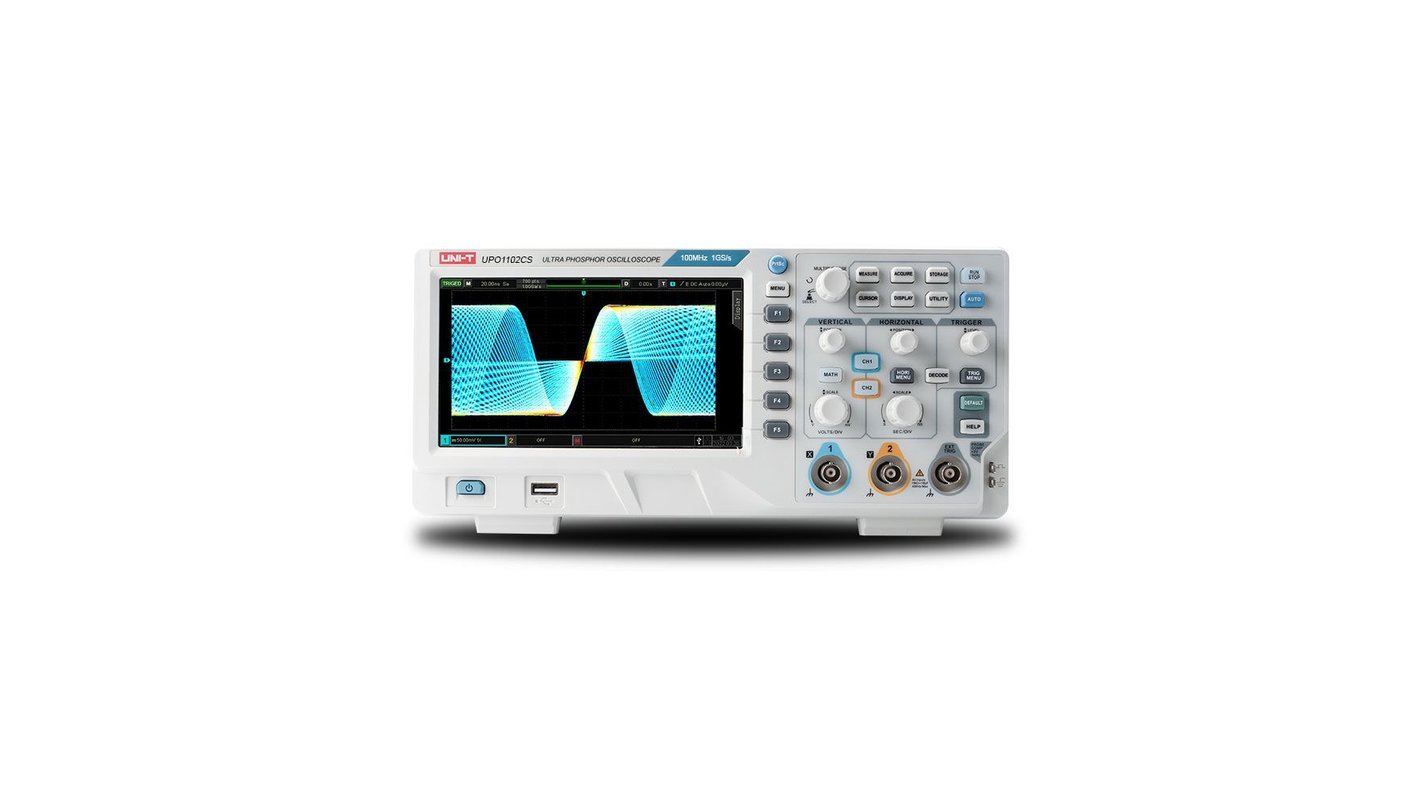

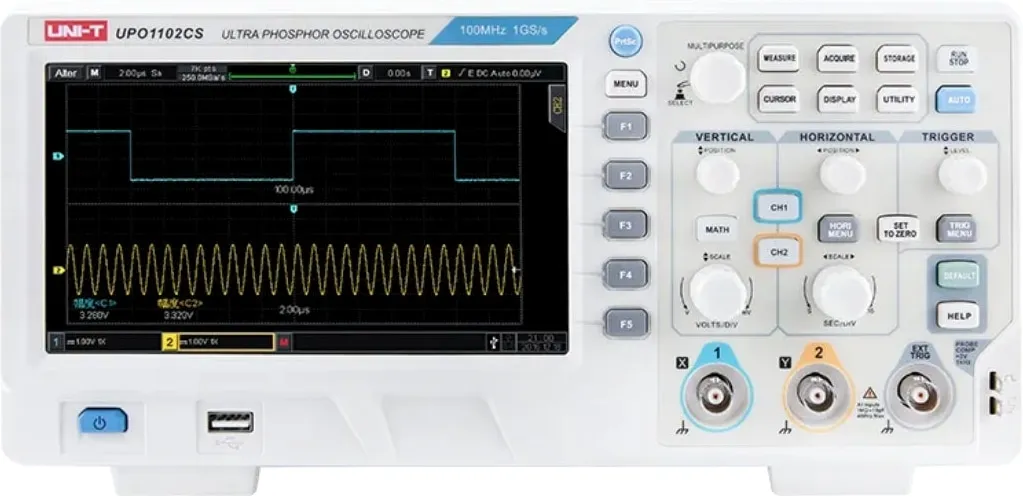

UNI-T UPO1102CS Oscilloscope 2 Channel, 100MHz

Original price was: ₹36,000.00.Current price is: ₹34,750.00.

The UNI-T UPO1102CS is a compact and versatile digital oscilloscope designed for a wide range of electronic testing and debugging applications. This model features a 100 MHz bandwidth and a 1 GSa/s real-time sampling rate, ensuring precise and accurate signal capture. With a 7-inch color TFT-LCD display, the UPO1102CS provides a clear and detailed view of waveforms, making it easier for users to analyze and troubleshoot electronic circuits. It also includes multiple triggering and measurement functions, USB connectivity for data transfer, and a user-friendly interface, making it an ideal choice for both professionals and hobbyists in electronics and engineering.

  • Bandwidth:  100MHz
  • Channels:  2
  • Real-Time Sample Rate:  1GSa/s
  • MAX. Memory Depth:  56Mpts
  • Waveform Capture Rate:  500,000wfms/s
  • Technical Documents
Weight 3 kg
Dimensions 12.4 × 30.6 × 13.8 cm
Add To Quote
Compare
Add to wishlist
Category:
Description

Support RS232, I2C, SPI, CAN and LIN trigger.

Innovative RS232, I2C, SPI, CAN and LIN hardware decoding.(Optional)

Vertical scale: 1 mV/div-20 V/div.

Low background noise:<100μVrms.

1M points enhanced FFT function. Support frequency setting, waterfall diagram, detection setting and marker measurement etc.

36 kinds of waveform parameters can be automatically measured.

Rich trigger functions (edge, pulse width, video, slope, runt, overshoot, delay, timeout, duration, setup and hold, Nth edge and pattern trigger).

Multi-Scopes support dual-channel independent trigger fluorescence display.

Multi-channel independent 7-bit hardware frequency counter.

DVM supports dual-channel independent AC and DC true RMS measurement.

Waveform arithmetic functions (FFT, +, -, ×, ÷, digital filtering, logic operations, and advanced operations).

Rich interfaces: USB Host、USB Device、LAN、EXT Trig、AUX Out(Trig Out、Pass/Fail).

Support SCPI programmable instrument standard command.

Support WEB access and control.

7 ” WVGA (800 ×480) TFT LCD

Warranty: 3 Year
