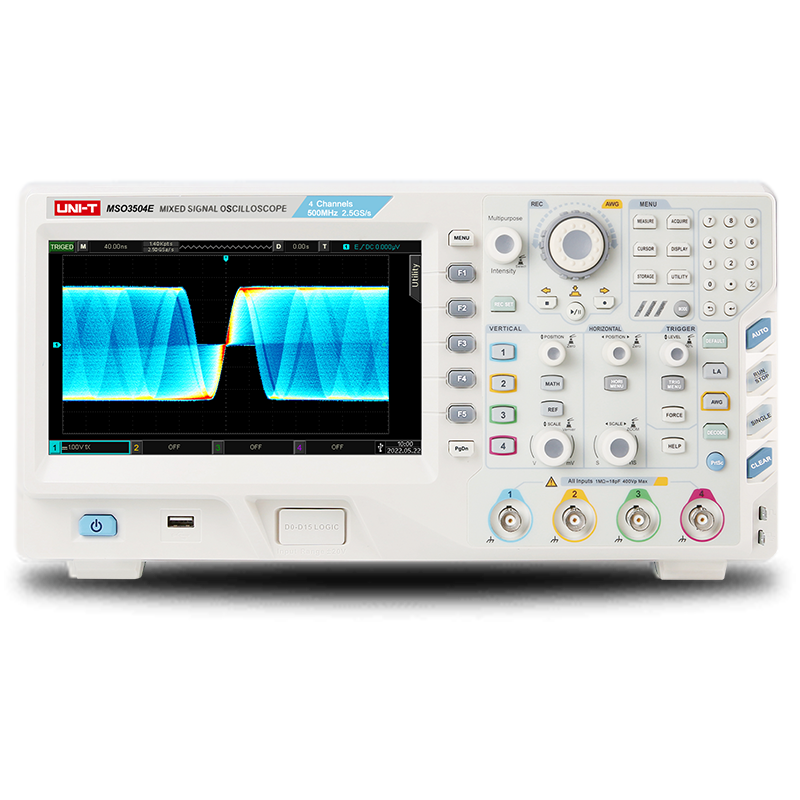

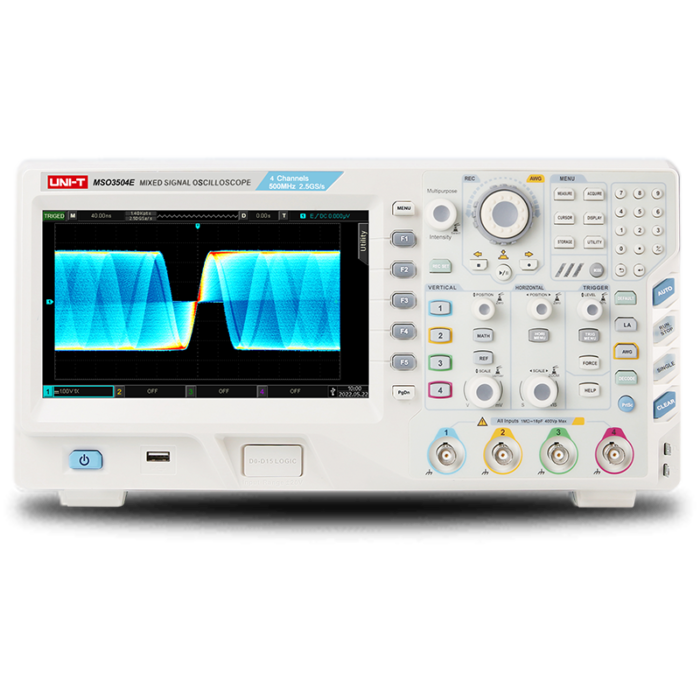

UNI-T MSO3354E Digital Oscilloscope – 4 Channel 350 MHz

Original price was: ₹300,000.00.Current price is: ₹269,999.00.

  • Analog channel bandwidth: 350 MHz
  • Real-time sampling rate:
    • Analog channel: 2.5 GSa/s
    • Digital channel : 1.25 GSa/s
  • Input impedance: 1 MΩ, 50 Ω
  • Storage depth:
    • Each channel: 70 Mpts
    • Maximum in single or scan mode: 250 Mpts
  • Waveform capture rate: up to 1,000,000 wfms/s
  • Hardware real-time waveform uninterrupted recording and analysis: up to 120,000 frames
  • 1M points enhanced FFT: supports frequency setting, waterfall diagram, detection setting, mark measurement
  • Auto measurement of 36 waveform parameters, supports parameter measurement while scanning
  • Multi-Scopes 2.0: supports multi-channel independent trigger, fluorescent display
  • Multi-channel independent 7-bit hardware frequency counter
  • DVM supports multi-channel independent AC / DC true RMS measurement
  • 8-inch 800×480 capacitive touch screen: supports gesture operations (click, slide, zoom, edit, drag)
  • Supports SCPI programmable instrument standard commands and web access

Blue pdf icon - Free blue file iconsTechnical Documents

Weight 4.5 kg
Dimensions 37 × 18.5 × 11.5 cm
Add To Quote
Compare
Add to wishlist
Category:
Description
Feature Details
Analog Channel Bandwidth 350 MHz
Real-time Sampling Rate Analog: 2.5 GSa/s, Digital: 1.25 GSa/s
Input Impedance 1 MΩ, 50 Ω
Storage Depth 70 Mpts per channel, up to 250 Mpts
Waveform Capture Rate Up to 1,000,000 wfms/s
Bode Plot Function Yes
Waveform Recording and Analysis Up to 120,000 frames
Waveform Operations +, -, ×, ÷, digital filtering, logic operation, advanced operation
FFT 1M points, enhanced FFT
Waveform Parameter Measurements Auto measurement of 36 parameters
Multi-Scopes 2.0 Multi-channel independent trigger and fluorescent display
Hardware Frequency Counter 7-bit, multi-channel independent
DVM Multi-channel independent AC/DC true RMS measurement
Trigger Functions Edge, pulse, video, slope, runt, over amplitude pulse, delay, timeout, duration, setup/hold, Nth edge, pattern
Zone Trigger Function Yes
Protocol Trigger and Decoding RS232, I2C, SPI, CAN, CAN-FD, LIN, FlexRay (optional)
Display Ultra Phosphor 2.0, 256-level grayscale
Touchscreen 8-inch, 800×480 capacitive touch, supports gesture operations

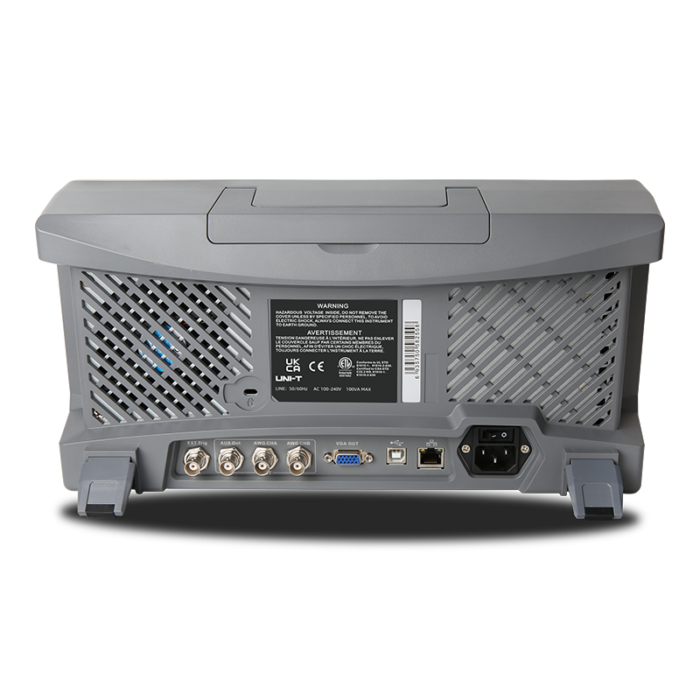

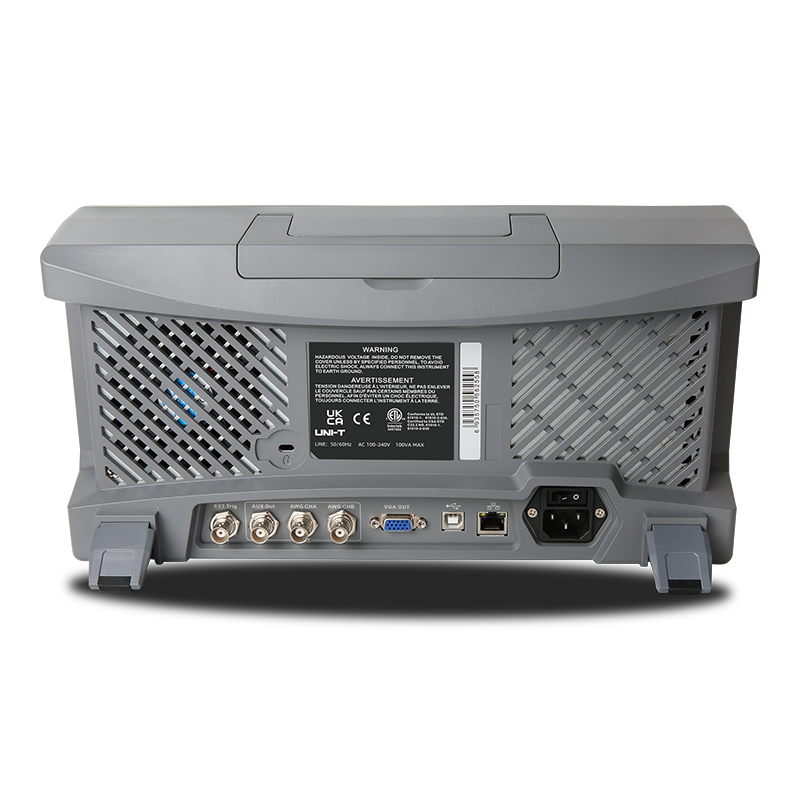

Interfaces USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail),, VGA
Data Storage and Upgrade Supports U disk data storage, U disk software upgrade, one-key copy screen
Communication Supports plug and play USB device, SCPI commands, web access and control
